Newly Developed Transparent and Flexible Radio Wave Reflection Film for 5G Communications

Will improve radio wave communications infrastructure without spoiling landscape

  SEKISUI CHEMICAL CO., LTD. (President and Representative Director: Keita Kato; hereinafter, “SEKISUI”) is pleased to announce that its High Performance Plastics Company (President: Ikusuke Shimizu) has recently developed a transparent and flexible radio wave reflection film for 5G communications by combining the SEKISUI’s distinguished film and optical adhesive technologies with the metamaterial technology of Meta Materials Inc. (Headquartered in Canada, led by George Palikaras, CEO).
  SEKISUI verified the radio wave environment of the film with collaboration from DOCOMO Innovations, Inc. (Headquartered in the U.S. and headed by Takashi Hara, CEO) and confirmed that the product, having unprecedentedly high transparency and radio wave diffusion characteristics, provides a wide frequency coverage useful for 5G and 6G communications.

1. Background of the development

  In 5G and 6G radio wave communications, higher frequency ranges than conventional LTE (4G) services are used: Sub-6 (3.6 GHz or higher) and millimeter (24 GHz or higher) wave ranges. Millimeter waves feature a high transmission capacity but have strong directivity; when reaching a shielding object such as a building, they attenuate, deteriorating communications quality. Installing a base station or relay station may resolve the deterioration, but such a solution involves a high additional investment, and a more reasonable cost solution was demanded.
  While millimeter wave reflection plates, which have a metamaterial copper pattern processed on the printed circuit board, have recently been developed as a possible measure for solving such a challenge, we directed attention to a transparent and flexible radio wave reflection film that would have a metamaterial structure and would not spoil the landscape. Believing that we would be able to provide a solution by incorporating our film and optical adhesive material technologies into such a transparent, flexible plate, SEKISUI has been committed to research and development efforts.
  We have realized a transparent and flexible high-frequency radio wave reflection film, which can be used for not only millimeter wave ranges but also a wide range from 2 GHz to 60 GHz while featuring a total luminous transmittance of 95%, by integrating our technologies with Meta’s world-leading nano-patterned transparent metamaterial technology NANOWEB® (*1) and its manufacturing technology RML® (*2).

2. Outline of the developed product

  This film consists of a metamaterial layer that has a high-frequency radio wave reflection structure, highly transparent adhesive, special coating that protects the film surface, and special adhesive layer.
  When placed on a surface such as a wall or ceiling, the film reflects radio waves, enabling them to reach shielded areas. This technology can improve a communications environment at a lower cost and in a shorter period of time, compared with the installation of a base station or relay station. The film, which is transparent and flexible and does not require a power connection, can be installed anywhere, on a surface of whatever shape, without spoiling the appearance of where it is installed.

  • Film structure
  • Film appearance

Advantages:
  (1) Flexible film that reflects radio waves of sub 6 GHz to millimeter wave ranges.
  (2) Transparent material that does not spoil the landscape, whether it is installed indoors or outdoors.
  (3) Easy installation without the need of power connection. Improves communications infrastructure anywhere.

Representation of wave reflection
Representation of wave reflection

3. Effect demonstration experiment

  Using the simulation technology of DOCOMO Innovations, Inc., SEKISUI verified the effects of the product in the planning stage and confirmed the effects indoors in the Solution Co-creation Lab of MIRAIT Corporation (Headquartered in Tokyo, headed by Toshiki Nakayama, President).
  The demonstration experiment confirmed that a reflection film placed 30 meters away from the base station properly controls the reflection of the radio waves, thus improving the communications infrastructure across a wide area.

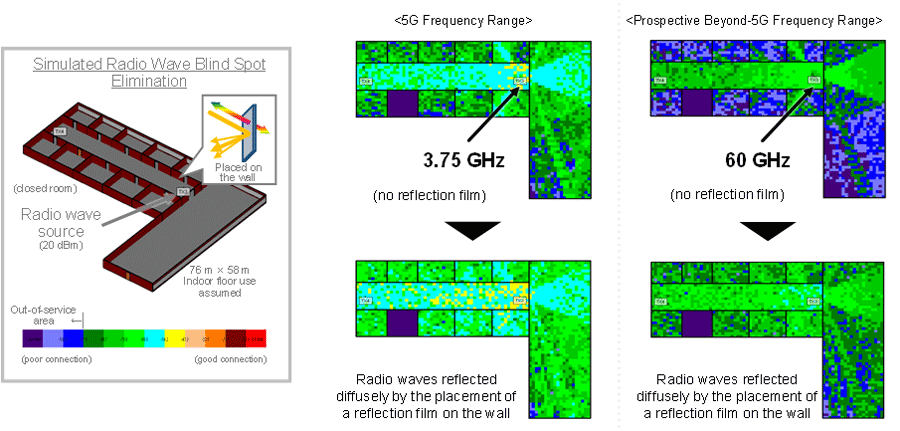

Indoor Radio Wave Environment Improvement Experiment Simulated by DOCOMO Innovations, Inc.
Indoor Radio Wave Environment Improvement Experiment Simulated

Indoor Radio Wave Environment Improvement Demonstration Experiment with Assistance provided by MIRAIT Corporation (28 GHz)
Indoor Radio Wave Environment Improvement Demonstration Experiment with Assistance provided

4. Future plans

  Using the advantages of transparency, flexibility, light weight and operation without power connection, SEKISUI plans to distribute the product for use in office buildings, factories, shopping malls, medical and care facilities, various sports facilities, farms, ranches, smart cities, underground shopping streets, rolling stock and roadway infrastructure while exploring other applications, including temporary or emergency sites providing first-aid services, construction sites, and camping areas.
  SEKISUI plans to start to distribute sample products in fiscal 2022, aiming to achieve a sales target of 6 billion yen by fiscal 2026.

This technology will be presented at the following trade shows:
• January 5–7, 2022   CES 2022 Meta Materials Inc. booth 9253, LVCC North Hall
• January 17–19, 2022 docomo Open House ’22
